[Feature-15248][dolphinscheduler-alert-plugins] add alert plugin aliyun-voice (#15248)

* add alert aliyun-voice

* VoiceParam replace these with lombok @Data

* security.ts add alarm_instance params

* optimize alert aliyun vocie code

* Merge Code

* rollback pnpm-lock.yaml to branch :origin/dev version

* add the doc about the new plugin

* add com.aliyun.dyvmsapi20170525 version 2.14

* completed

* run mvn spotless:apply

* Code optimization

* Change to @Data

* Code specification optimization

* add com.aliyund.yvmsapi20170525.jar license

* modify com.aliyund.yvmsapi20170525.jar license

* modify com.aliyund.yvmsapi20170525.jar license

* add aliyun-vocie licenses

* add aliyun-voice link to docsdev.js

* modify vocie module to aliyunVoice

* add lisense

---------

Co-authored-by: xujiaqiang <“xujiaqiangwz@163.com”>
Co-authored-by: 旺阳 <wang@lqwang.net>
Co-authored-by: David Zollo <dailidong66@gmail.com>

docs/configs/docsdev.js

@@ -407,6 +407,9 @@ export default {
                             {
                                 title: 'Slack',
                                 link: '/en-us/docs/dev/user_doc/guide/alert/slack.html',
+                            },{
+                                title: 'Aliyun Voice',
+                                link: '/en-us/docs/dev/user_doc/guide/alert/aliyun-voice.html',
                             },
                         ],
                     },
@@ -1121,6 +1124,10 @@ export default {
                                 title: 'Slack告警',
                                 link: '/zh-cn/docs/dev/user_doc/guide/alert/slack.html',
                             },
+                            {
+                                title: '阿里云语音告警',
+                                link: '/zh-cn/docs/dev/user_doc/guide/alert/aliyun-voice.html',
+                            },
                         ],
                     },
                     {

docs/docs/en/guide/alert/aliyun-voice.md

@@ -0,0 +1,32 @@
+# Alibaba Cloud - Voice alarm
+
+If you need to use `Voice` for alerting, create an alert instance in the alert instance management and select the `Voice` plugin.
+
+## 参数配置
+
+* Called number
+
+  > Called display number
+
+* Call display number
+
+  > The number for receiving voice notifications
+
+* VoiceCode
+
+  > Voice ID of the VoiceCode
+
+* accessKeyId
+
+  > Your AccessKey ID
+
+* accessKeySecret
+
+  > Your AccessKey Secret
+
+### example
+
+Voice notification Sends a voice notification of the file type to a specified number。

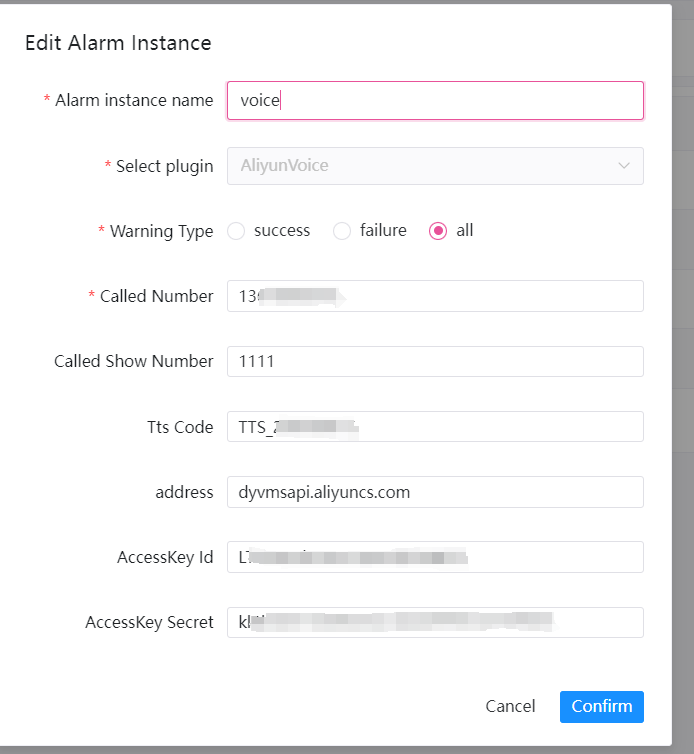

+The following shows the `voice` configuration example:
+
+![enterprise-wechat-app-msg-config](../../../../img/alert/aliyun-vocie-form-example.png)

docs/docs/zh/guide/alert/aliyun-voice.md

@@ -0,0 +1,32 @@
+# 阿里云-语音告警
+
+如果您需要使用到`语音`（阿里云）进行告警，请在告警实例管理里创建告警实例，选择`语音`插件。
+
+## 参数配置
+
+* 被叫电话号码
+
+  > 被叫显示号
+
+* 呼叫显示号码
+
+  > 接收语音通知的号码
+
+* 语音模板
+
+  > 语音通知文件的语音ID
+
+* accessKeyId
+
+  > 您的 AccessKey ID
+
+* accessKeySecret
+
+  > 您的 AccessKey Secret
+
+### 阿里云-语音告警示例
+
+向指定号码发送语音通知文件类型的语音通知。
+下图是告警配置的示例:
+
+![enterprise-wechat-app-msg-config](../../../../img/alert/aliyun-vocie-form-example.png)

dolphinscheduler-alert/dolphinscheduler-alert-plugins/dolphinscheduler-alert-aliyunVoice/pom.xml

@@ -0,0 +1,40 @@
+<?xml version="1.0" encoding="UTF-8"?>
+<!--
+  ~ Licensed to the Apache Software Foundation (ASF) under one or more
+  ~ contributor license agreements.  See the NOTICE file distributed with
+  ~ this work for additional information regarding copyright ownership.
+  ~ The ASF licenses this file to You under the Apache License, Version 2.0
+  ~ (the "License"); you may not use this file except in compliance with
+  ~ the License.  You may obtain a copy of the License at
+  ~
+  ~     http://www.apache.org/licenses/LICENSE-2.0
+  ~
+  ~ Unless required by applicable law or agreed to in writing, software
+  ~ distributed under the License is distributed on an "AS IS" BASIS,
+  ~ WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+  ~ See the License for the specific language governing permissions and
+  ~ limitations under the License.
+  -->
+<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
+         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
+    <modelVersion>4.0.0</modelVersion>
+    <parent>
+        <groupId>org.apache.dolphinscheduler</groupId>
+        <artifactId>dolphinscheduler-alert-plugins</artifactId>
+        <version>dev-SNAPSHOT</version>
+    </parent>
+
+    <artifactId>dolphinscheduler-alert-aliyunVoice</artifactId>
+    <packaging>jar</packaging>
+
+    <dependencies>
+        <dependency>
+            <groupId>org.apache.dolphinscheduler</groupId>
+            <artifactId>dolphinscheduler-alert-api</artifactId>
+        </dependency>
+        <dependency>
+            <groupId>com.aliyun</groupId>
+            <artifactId>dyvmsapi20170525</artifactId>
+        </dependency>
+    </dependencies>
+</project>

dolphinscheduler-alert/dolphinscheduler-alert-plugins/dolphinscheduler-alert-aliyunVoice/src/main/java/org/apache/dolphinscheduler/plugin/alert/voice/VoiceAlertChannel.java

@@ -0,0 +1,70 @@
+/*
+ * Licensed to the Apache Software Foundation (ASF) under one or more
+ * contributor license agreements.  See the NOTICE file distributed with
+ * this work for additional information regarding copyright ownership.
+ * The ASF licenses this file to You under the Apache License, Version 2.0
+ * (the "License"); you may not use this file except in compliance with
+ * the License.  You may obtain a copy of the License at
+ *
+ *    http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package org.apache.dolphinscheduler.plugin.alert.voice;
+
+import static org.apache.dolphinscheduler.plugin.alert.voice.VoiceAlertConstants.NAME_ACCESS_KEY_ID;
+import static org.apache.dolphinscheduler.plugin.alert.voice.VoiceAlertConstants.NAME_ACCESS_KEY_SECRET;
+import static org.apache.dolphinscheduler.plugin.alert.voice.VoiceAlertConstants.NAME_ADDRESS;
+import static org.apache.dolphinscheduler.plugin.alert.voice.VoiceAlertConstants.NAME_CALLED_NUMBER;
+import static org.apache.dolphinscheduler.plugin.alert.voice.VoiceAlertConstants.NAME_CALLED_SHOW_NUMBER;
+import static org.apache.dolphinscheduler.plugin.alert.voice.VoiceAlertConstants.NAME_TTS_CODE;
+
+import org.apache.dolphinscheduler.alert.api.AlertChannel;
+import org.apache.dolphinscheduler.alert.api.AlertInfo;
+import org.apache.dolphinscheduler.alert.api.AlertResult;
+
+import java.util.Map;
+
+import lombok.extern.slf4j.Slf4j;
+
+@Slf4j
+public final class VoiceAlertChannel implements AlertChannel {
+
+    @Override
+    public AlertResult process(AlertInfo info) {
+
+        Map<String, String> paramsMap = info.getAlertParams();
+        if (null == paramsMap) {
+            return new AlertResult("false", "aliyun-voice params is null");
+        }
+        VoiceParam voiceParam = buildVoiceParam(paramsMap);
+        return new VoiceSender(voiceParam).send();
+    }
+
+    public VoiceParam buildVoiceParam(Map<String, String> paramsMap) {
+        String calledNumber = paramsMap.get(NAME_CALLED_NUMBER);
+        String calledShowNumber = paramsMap.get(NAME_CALLED_SHOW_NUMBER);
+        String ttsCode = paramsMap.get(NAME_TTS_CODE);
+        VoiceParam param = new VoiceParam();
+        param.setCalledNumber(calledNumber);
+        param.setCalledShowNumber(calledShowNumber);
+        param.setTtsCode(ttsCode);
+        VoiceParam.Connection connection = new VoiceParam.Connection();
+        String address = paramsMap.get(NAME_ADDRESS);
+        String accessKeyId = paramsMap.get(NAME_ACCESS_KEY_ID);
+        String accessKeySecret = paramsMap.get(NAME_ACCESS_KEY_SECRET);
+        connection.setAddress(address);
+        connection.setAccessKeyId(accessKeyId);
+        connection.setAccessKeySecret(accessKeySecret);
+        param.setConnection(connection);
+
+        // set callback ID
+        param.setOutId(calledShowNumber);
+        return param;
+    }
+}

dolphinscheduler-alert/dolphinscheduler-alert-plugins/dolphinscheduler-alert-aliyunVoice/src/main/java/org/apache/dolphinscheduler/plugin/alert/voice/VoiceAlertChannelFactory.java

@@ -0,0 +1,95 @@
+/*
+ * Licensed to the Apache Software Foundation (ASF) under one or more
+ * contributor license agreements.  See the NOTICE file distributed with
+ * this work for additional information regarding copyright ownership.
+ * The ASF licenses this file to You under the Apache License, Version 2.0
+ * (the "License"); you may not use this file except in compliance with
+ * the License.  You may obtain a copy of the License at
+ *
+ *    http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package org.apache.dolphinscheduler.plugin.alert.voice;
+
+import org.apache.dolphinscheduler.alert.api.AlertChannel;
+import org.apache.dolphinscheduler.alert.api.AlertChannelFactory;
+import org.apache.dolphinscheduler.alert.api.AlertInputTips;
+import org.apache.dolphinscheduler.spi.params.base.PluginParams;
+import org.apache.dolphinscheduler.spi.params.base.Validate;
+import org.apache.dolphinscheduler.spi.params.input.InputParam;
+
+import java.util.Arrays;
+import java.util.List;
+
+import com.google.auto.service.AutoService;
+
+@AutoService(AlertChannelFactory.class)
+public final class VoiceAlertChannelFactory implements AlertChannelFactory {
+
+    @Override
+    public String name() {
+        return "AliyunVoice";
+    }
+
+    @Override
+    public List<PluginParams> params() {
+
+        InputParam calledNumber =
+                InputParam.newBuilder(VoiceAlertConstants.NAME_CALLED_NUMBER, VoiceAlertConstants.CALLED_NUMBER)
+                        .setPlaceholder(AlertInputTips.CALLED_NUMBER.getMsg())
+                        .addValidate(Validate.newBuilder()
+                                .setRequired(true)
+                                .build())
+                        .build();
+
+        InputParam calledShowNumber = InputParam
+                .newBuilder(VoiceAlertConstants.NAME_CALLED_SHOW_NUMBER, VoiceAlertConstants.CALLED_SHOW_NUMBER)
+                .setPlaceholder(AlertInputTips.CALLED_SHOW_NUMBER.getMsg())
+                .addValidate(Validate.newBuilder()
+                        .setRequired(false)
+                        .build())
+                .build();
+
+        InputParam ttsCode = InputParam.newBuilder(VoiceAlertConstants.NAME_TTS_CODE, VoiceAlertConstants.TTS_CODE)
+                .setPlaceholder(AlertInputTips.TTS_CODE.getMsg())
+                .addValidate(Validate.newBuilder()
+                        .setRequired(false)
+                        .build())
+                .build();
+
+        InputParam address = InputParam.newBuilder(VoiceAlertConstants.NAME_ADDRESS, VoiceAlertConstants.ADDRESS)
+                .setPlaceholder(AlertInputTips.ALIYUN_VIICE_ADDRESS.getMsg())
+                .addValidate(Validate.newBuilder()
+                        .setRequired(false)
+                        .build())
+                .build();
+
+        InputParam accessKeyId =
+                InputParam.newBuilder(VoiceAlertConstants.NAME_ACCESS_KEY_ID, VoiceAlertConstants.ACCESS_KEY_ID)
+                        .setPlaceholder(AlertInputTips.ALIYUN_VIICE_ACCESSKEYID.getMsg())
+                        .addValidate(Validate.newBuilder()
+                                .setRequired(false)
+                                .build())
+                        .build();
+        InputParam accessKeySecret =
+                InputParam.newBuilder(VoiceAlertConstants.NAME_ACCESS_KEY_SECRET, VoiceAlertConstants.ACCESS_KEY_SECRET)
+                        .setPlaceholder(AlertInputTips.ALIYUN_VIICE_ACCESSKEY_SECRET.getMsg())
+                        .addValidate(Validate.newBuilder()
+                                .setRequired(false)
+                                .build())
+                        .build();
+
+        return Arrays.asList(calledNumber, calledShowNumber, ttsCode, address, accessKeyId, accessKeySecret);
+    }
+
+    @Override
+    public AlertChannel create() {
+        return new VoiceAlertChannel();
+    }
+}

dolphinscheduler-alert/dolphinscheduler-alert-plugins/dolphinscheduler-alert-aliyunVoice/src/main/java/org/apache/dolphinscheduler/plugin/alert/voice/VoiceAlertConstants.java

@@ -0,0 +1,79 @@
+/*
+ * Licensed to the Apache Software Foundation (ASF) under one or more
+ * contributor license agreements.  See the NOTICE file distributed with
+ * this work for additional information regarding copyright ownership.
+ * The ASF licenses this file to You under the Apache License, Version 2.0
+ * (the "License"); you may not use this file except in compliance with
+ * the License.  You may obtain a copy of the License at
+ *
+ *    http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package org.apache.dolphinscheduler.plugin.alert.voice;
+
+public class VoiceAlertConstants {
+
+    /**
+     * called Number
+     */
+    static final String NAME_CALLED_NUMBER = "calledNumber";
+    /**
+     * called Number
+     */
+    static final String CALLED_NUMBER = "$t('calledNumber')";
+    /**
+     * called Show Number
+     */
+    static final String NAME_CALLED_SHOW_NUMBER = "calledShowNumber";
+    /**
+     * called Show Number
+     */
+    static final String CALLED_SHOW_NUMBER = "$t('calledShowNumber')";
+    /**
+     * tts Code
+     */
+    static final String NAME_TTS_CODE = "ttsCode";
+    /**
+     * tts Code
+     */
+    static final String TTS_CODE = "$t('ttsCode')";
+    /**
+     * tts Param
+     */
+    static final String TTS_PARAM = "ttsParam";
+
+    /**
+     * address
+     */
+    static final String NAME_ADDRESS = "address";
+    /**
+     * address
+     */
+    static final String ADDRESS = "$t('address')";
+    /**
+     * accessKeyId
+     */
+    static final String NAME_ACCESS_KEY_ID = "accessKeyId";
+    /**
+     * accessKeyId
+     */
+    static final String ACCESS_KEY_ID = "$t('accessKeyId')";
+    /**
+     * accessKeySecret
+     */
+    static final String NAME_ACCESS_KEY_SECRET = "accessKeySecret";
+    /**
+     * accessKeySecret
+     */
+    static final String ACCESS_KEY_SECRET = "$t('accessKeySecret')";
+
+    private VoiceAlertConstants() {
+        throw new UnsupportedOperationException("This is a utility class and cannot be instantiated");
+    }
+}

dolphinscheduler-alert/dolphinscheduler-alert-plugins/dolphinscheduler-alert-aliyunVoice/src/main/java/org/apache/dolphinscheduler/plugin/alert/voice/VoiceParam.java

@@ -0,0 +1,74 @@
+/*
+ * Licensed to the Apache Software Foundation (ASF) under one or more
+ * contributor license agreements.  See the NOTICE file distributed with
+ * this work for additional information regarding copyright ownership.
+ * The ASF licenses this file to You under the Apache License, Version 2.0
+ * (the "License"); you may not use this file except in compliance with
+ * the License.  You may obtain a copy of the License at
+ *
+ *    http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package org.apache.dolphinscheduler.plugin.alert.voice;
+
+import lombok.Data;
+
+@Data
+public class VoiceParam {
+
+    /**
+     * called Number
+     */
+    private String calledNumber;
+    /**
+     * called Show Number
+     */
+    private String calledShowNumber;
+    /**
+     * tts code
+     */
+    private String ttsCode;
+    /**
+     * tts param
+     */
+    private String ttsParam;
+
+    /**
+     * connection info
+     */
+    private Connection connection;
+
+    /**
+     * outId
+     */
+    private String outId;
+
+    @Data
+    public static class Connection {
+
+        /**
+         * address
+         */
+        private String address;
+
+        /**
+         * accessKeyId
+         */
+        private String accessKeyId;
+        /**
+         * accessKeySecret
+         */
+        private String accessKeySecret;
+
+        /**
+         * tts Code
+         */
+        private String ttsCode;
+    }
+}

dolphinscheduler-alert/dolphinscheduler-alert-plugins/dolphinscheduler-alert-aliyunVoice/src/main/java/org/apache/dolphinscheduler/plugin/alert/voice/VoiceSender.java

@@ -0,0 +1,101 @@
+/*
+ * Licensed to the Apache Software Foundation (ASF) under one or more
+ * contributor license agreements.  See the NOTICE file distributed with
+ * this work for additional information regarding copyright ownership.
+ * The ASF licenses this file to You under the Apache License, Version 2.0
+ * (the "License"); you may not use this file except in compliance with
+ * the License.  You may obtain a copy of the License at
+ *
+ *    http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package org.apache.dolphinscheduler.plugin.alert.voice;
+
+import org.apache.dolphinscheduler.alert.api.AlertResult;
+
+import lombok.extern.slf4j.Slf4j;
+
+import com.aliyun.dyvmsapi20170525.Client;
+import com.aliyun.dyvmsapi20170525.models.SingleCallByTtsRequest;
+import com.aliyun.dyvmsapi20170525.models.SingleCallByTtsResponse;
+import com.aliyun.dyvmsapi20170525.models.SingleCallByTtsResponseBody;
+import com.aliyun.teaopenapi.models.Config;
+import com.aliyun.teautil.models.RuntimeOptions;
+
+@Slf4j
+public final class VoiceSender {
+
+    private VoiceParam voiceParam;
+
+    /**
+     * create Client
+     *
+     * @param voiceParam voidce Param
+     * @return Client
+     * @throws Exception
+     */
+    public VoiceSender(VoiceParam voiceParam) {
+        this.voiceParam = voiceParam;
+    }
+
+    public AlertResult send() {
+        AlertResult alertResult = new AlertResult();
+        alertResult.setStatus("false");
+        try {
+            Client client = createClient(voiceParam.getConnection());
+            SingleCallByTtsRequest singleCallByTtsRequest = new SingleCallByTtsRequest()
+                    .setCalledNumber(voiceParam.getCalledNumber())
+                    .setTtsCode(voiceParam.getTtsCode())
+                    .setOutId(voiceParam.getOutId());
+            RuntimeOptions runtime = new RuntimeOptions();
+            SingleCallByTtsResponse response = client.singleCallByTtsWithOptions(singleCallByTtsRequest, runtime);
+            if (response == null) {
+                alertResult.setMessage("aliyun-vocie response is null");
+                return alertResult;
+            }
+            SingleCallByTtsResponseBody body = response.getBody();
+            if (body.code.equalsIgnoreCase("ok")) {
+                alertResult.setStatus("true");
+                alertResult.setMessage(body.getCallId());
+            } else {
+                alertResult.setMessage(body.getMessage());
+            }
+        } catch (Exception e) {
+            log.error("send aliyun vocie error.", e);
+            alertResult.setMessage(e.getMessage());
+        }
+        return alertResult;
+    }
+
+    /**
+     * create Client
+     *
+     * @param conn conn info
+     * @return Client
+     * @throws Exception
+     */
+    private com.aliyun.dyvmsapi20170525.Client createClient(VoiceParam.Connection conn) throws Exception {
+        Config config = new Config()
+                // AccessKey ID
+                .setAccessKeyId(conn.getAccessKeyId())
+                // AccessKey Secret
+                .setAccessKeySecret(conn.getAccessKeySecret());
+        // address
+        config.endpoint = conn.getAddress();
+        return new com.aliyun.dyvmsapi20170525.Client(config);
+    }
+
+    public VoiceParam getVoidcePara() {
+        return voiceParam;
+    }
+
+    public void setVoidcePara(VoiceParam voidcePara) {
+        this.voiceParam = voidcePara;
+    }
+}

dolphinscheduler-alert/dolphinscheduler-alert-plugins/dolphinscheduler-alert-aliyunVoice/src/test/java/VoiceAlertChannelFactoryTest.java

@@ -0,0 +1,47 @@
+/*
+ * Licensed to the Apache Software Foundation (ASF) under one or more
+ * contributor license agreements.  See the NOTICE file distributed with
+ * this work for additional information regarding copyright ownership.
+ * The ASF licenses this file to You under the Apache License, Version 2.0
+ * (the "License"); you may not use this file except in compliance with
+ * the License.  You may obtain a copy of the License at
+ *
+ *    http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+import org.apache.dolphinscheduler.alert.api.AlertChannel;
+import org.apache.dolphinscheduler.common.utils.JSONUtils;
+import org.apache.dolphinscheduler.plugin.alert.voice.VoiceAlertChannelFactory;
+import org.apache.dolphinscheduler.spi.params.base.PluginParams;
+
+import java.util.List;
+
+import org.junit.jupiter.api.Assertions;
+import org.junit.jupiter.api.Test;
+
+/**
+ * VoiceAlertChannelFactoryTest
+ */
+class VoiceAlertChannelFactoryTest {
+
+    @Test
+    void testGetParams() {
+        VoiceAlertChannelFactory voiceAlertChannelFactory = new VoiceAlertChannelFactory();
+        List<PluginParams> params = voiceAlertChannelFactory.params();
+        JSONUtils.toJsonString(params);
+        Assertions.assertEquals(6, params.size());
+    }
+
+    @Test
+    void testCreate() {
+        VoiceAlertChannelFactory voiceAlertChannelFactory = new VoiceAlertChannelFactory();
+        AlertChannel alertChannel = voiceAlertChannelFactory.create();
+        Assertions.assertNotNull(alertChannel);
+    }
+}

dolphinscheduler-alert/dolphinscheduler-alert-plugins/dolphinscheduler-alert-aliyunVoice/src/test/java/VoiceSenderTest.java

@@ -0,0 +1,52 @@
+/*
+ * Licensed to the Apache Software Foundation (ASF) under one or more
+ * contributor license agreements.  See the NOTICE file distributed with
+ * this work for additional information regarding copyright ownership.
+ * The ASF licenses this file to You under the Apache License, Version 2.0
+ * (the "License"); you may not use this file except in compliance with
+ * the License.  You may obtain a copy of the License at
+ *
+ *    http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+import org.apache.dolphinscheduler.alert.api.AlertResult;
+import org.apache.dolphinscheduler.plugin.alert.voice.VoiceParam;
+import org.apache.dolphinscheduler.plugin.alert.voice.VoiceSender;
+
+import org.junit.jupiter.api.Assertions;
+import org.junit.jupiter.api.BeforeEach;
+import org.junit.jupiter.api.Test;
+
+/**
+ * VoiceSenderTest
+ */
+class VoiceSenderTest {
+
+    private static VoiceParam voiceParam = new VoiceParam();
+
+    @BeforeEach
+    void initVoidceParam() {
+        voiceParam.setCalledNumber("12345678910");
+        voiceParam.setTtsParam("TTS_2450XXXXX");
+        VoiceParam.Connection connection = new VoiceParam.Connection();
+        connection.setAddress("xxxxxx.aliyuncs.com");
+        connection.setAccessKeyId("XXXXXXXXX");
+        connection.setAccessKeySecret("XXXXXXXXX");
+        voiceParam.setConnection(connection);
+    }
+
+    @Test
+    void testSendWeChatTableMsg() {
+        VoiceSender weChatSender = new VoiceSender(voiceParam);
+
+        AlertResult alertResult = weChatSender.send();
+        Assertions.assertEquals("false", alertResult.getStatus());
+    }
+
+}

dolphinscheduler-alert/dolphinscheduler-alert-plugins/dolphinscheduler-alert-all/pom.xml

@@ -82,7 +82,11 @@
             <artifactId>dolphinscheduler-alert-wechat</artifactId>
             <version>${project.version}</version>
         </dependency>
-
+        <dependency>
+            <groupId>org.apache.dolphinscheduler</groupId>
+            <artifactId>dolphinscheduler-alert-aliyunVoice</artifactId>
+            <version>${project.version}</version>
+        </dependency>
     </dependencies>

 </project>

dolphinscheduler-alert/dolphinscheduler-alert-plugins/dolphinscheduler-alert-api/src/main/java/org/apache/dolphinscheduler/alert/api/AlertInputTips.java

@@ -50,6 +50,13 @@ public enum AlertInputTips {
     SECRET("please input secret", "请输入secret"),
     WECHAT_MENTION_USERS("use `|` to separate userIds and `@all` to everyone", "使用`|`来分割userId或使用`@all`来提到所有人"),
     WECHAT_AGENT_ID("please input agent id or chat id", "请输入agent id或chat id"),
+    CALLED_NUMBER("please input called number", "请输入被叫电话号码"),
+    CALLED_SHOW_NUMBER("Please enter the call display number (the default number will be used if you do not fill in)",
+            "请输入呼叫显示号码(不填则使用默认号码)"),
+    TTS_CODE("please input tts code", "请输入语音模板编码"),
+    ALIYUN_VIICE_ADDRESS("please input aliyun viice address", "请输入阿里云访问域名"),
+    ALIYUN_VIICE_ACCESSKEYID("please input accessKeyId", "请输入accessKeyId"),
+    ALIYUN_VIICE_ACCESSKEY_SECRET("please input accessKeySecret", "请输入accessKeySecret"),
     ANNOTATION("please input annotation in json form", "请输入json格式的annotation"),
     GENERATOR_URL("please input Generator URL", "请输入生成地址");


dolphinscheduler-alert/dolphinscheduler-alert-plugins/pom.xml

@@ -39,6 +39,7 @@
         <module>dolphinscheduler-alert-pagerduty</module>
         <module>dolphinscheduler-alert-webexteams</module>
         <module>dolphinscheduler-alert-telegram</module>
+        <module>dolphinscheduler-alert-aliyunVoice</module>
         <module>dolphinscheduler-alert-prometheus</module>
     </modules>


dolphinscheduler-bom/pom.xml

@@ -122,6 +122,7 @@
         <testcontainer.version>1.17.6</testcontainer.version>
         <checker-qual.version>3.19.0</checker-qual.version>
         <zeppelin-client.version>0.10.1</zeppelin-client.version>
+        <aliyun-voice.version>2.1.4</aliyun-voice.version>
     </properties>

     <dependencyManagement>
@@ -960,7 +961,11 @@
                 <artifactId>checker-qual</artifactId>
                 <version>${checker-qual.version}</version>
             </dependency>
-
+            <dependency>
+                <groupId>com.aliyun</groupId>
+                <artifactId>dyvmsapi20170525</artifactId>
+                <version>${aliyun-voice.version}</version>
+            </dependency>
         </dependencies>
     </dependencyManagement>


dolphinscheduler-dist/release-docs/LICENSE

@@ -562,6 +562,19 @@ The text of each license is also included at licenses/LICENSE-[project].txt.
     org.apache.oltu.oauth2.client 1.0.2  https://mvnrepository.com/artifact/org.apache.oltu.oauth2/org.apache.oltu.oauth2.client/1.0.2  Apache 2.0
     org.apache.oltu.oauth2.common 1.0.2  https://mvnrepository.com/artifact/org.apache.oltu.oauth2/org.apache.oltu.oauth2.common/1.0.2  Apache 2.0
     esdk-obs-java-bundle 3.23.3 https://mvnrepository.com/artifact/com.huaweicloud/esdk-obs-java-bundle/3.23.3  Apache 2.0
+    dyvmsapi20170525 2.1.4 https://github.com/aliyun/aliyun-openapi-java-sdk/blob/master/README.md#license Apache 2.0
+    alibabacloud-gateway-spi 0.0.1 https://github.com/aliyun/aliyun-openapi-java-sdk/blob/master/README.md#license Apache 2.0
+    credentials-java 0.2.2 https://github.com/aliyun/aliyun-openapi-java-sdk/blob/master/README.md#license Apache 2.0
+    endpoint-util 0.0.7 https://github.com/aliyun/aliyun-openapi-java-sdk/blob/master/README.md#license Apache 2.0
+    openapiutil 0.1.14 https://github.com/aliyun/aliyun-openapi-java-sdk/blob/master/README.md#license Apache 2.0
+    tea-1.1.14.jar https://github.com/aliyun/aliyun-openapi-java-sdk/blob/master/README.md#license Apache 2.0
+    tea-openapi 0.2.2.jar https://github.com/aliyun/aliyun-openapi-java-sdk/blob/master/README.md#license Apache 2.0
+    tea-rpc 0.0.11.jar https://github.com/aliyun/aliyun-openapi-java-sdk/blob/master/README.md#license Apache 2.0
+    tea-rpc-util 0.1.3.jar https://github.com/aliyun/aliyun-openapi-java-sdk/blob/master/README.md#license Apache 2.0
+    tea-util 0.2.13.jar https://github.com/aliyun/aliyun-openapi-java-sdk/blob/master/README.md#license Apache 2.0
+
+
+



@@ -602,6 +615,7 @@ The text of each license is also included at licenses/LICENSE-[project].txt.
     google-auth-library-credentials 1.15.0: https://mvnrepository.com/artifact/com.google.auth/google-auth-library-credentials/1.15.0, BSD 3-clause
     google-auth-library-oauth2-http 1.15.0: https://mvnrepository.com/artifact/com.google.auth/google-auth-library-oauth2-http/1.15.0, BSD 3-clause
     threetenbp 1.6.5: https://mvnrepository.com/artifact/org.threeten/threetenbp/1.6.5, BSD 3-clause
+    dom4j 2.1.3 https://github.com/dom4j/dom4j/blob/master/LICENSE BSD 3-clause

 ========================================================================
 CDDL licenses
@@ -624,7 +638,8 @@ The text of each license is also included at licenses/LICENSE-[project].txt.
     jta 1.1: https://mvnrepository.com/artifact/javax.transaction/jta/1.1, CDDL 1.0
     transaction-api 1.1: https://mvnrepository.com/artifact/javax.transaction/transaction-api/1.1, CDDL 1.0
     javax.el 3.0.0: https://mvnrepository.com/artifact/org.glassfish/javax.el/3.0.0, CDDL and GPL and GPL 2.0
-
+    jaxb-core 2.3.0 https://mvnrepository.com/artifact/com.sun.xml.bind/jaxb-core/2.3.0 GPL 1.1
+    jaxb-impl 2.3.0 https://mvnrepository.com/artifact/com.sun.xml.bind/jaxb-impl/2.3.0 GPL 1.1
 ========================================================================
 EPL licenses
 ========================================================================

dolphinscheduler-dist/release-docs/licenses/LICENSE-dyvmsapi20170525.txt

@@ -0,0 +1,202 @@
+
+                                 Apache License
+                           Version 2.0, January 2004
+                        http://www.apache.org/licenses/
+
+   TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION
+
+   1. Definitions.
+
+      "License" shall mean the terms and conditions for use, reproduction,
+      and distribution as defined by Sections 1 through 9 of this document.
+
+      "Licensor" shall mean the copyright owner or entity authorized by
+      the copyright owner that is granting the License.
+
+      "Legal Entity" shall mean the union of the acting entity and all
+      other entities that control, are controlled by, or are under common
+      control with that entity. For the purposes of this definition,
+      "control" means (i) the power, direct or indirect, to cause the
+      direction or management of such entity, whether by contract or
+      otherwise, or (ii) ownership of fifty percent (50%) or more of the
+      outstanding shares, or (iii) beneficial ownership of such entity.
+
+      "You" (or "Your") shall mean an individual or Legal Entity
+      exercising permissions granted by this License.
+
+      "Source" form shall mean the preferred form for making modifications,
+      including but not limited to software source code, documentation
+      source, and configuration files.
+
+      "Object" form shall mean any form resulting from mechanical
+      transformation or translation of a Source form, including but
+      not limited to compiled object code, generated documentation,
+      and conversions to other media types.
+
+      "Work" shall mean the work of authorship, whether in Source or
+      Object form, made available under the License, as indicated by a
+      copyright notice that is included in or attached to the work
+      (an example is provided in the Appendix below).
+
+      "Derivative Works" shall mean any work, whether in Source or Object
+      form, that is based on (or derived from) the Work and for which the
+      editorial revisions, annotations, elaborations, or other modifications
+      represent, as a whole, an original work of authorship. For the purposes
+      of this License, Derivative Works shall not include works that remain
+      separable from, or merely link (or bind by name) to the interfaces of,
+      the Work and Derivative Works thereof.
+
+      "Contribution" shall mean any work of authorship, including
+      the original version of the Work and any modifications or additions
+      to that Work or Derivative Works thereof, that is intentionally
+      submitted to Licensor for inclusion in the Work by the copyright owner
+      or by an individual or Legal Entity authorized to submit on behalf of
+      the copyright owner. For the purposes of this definition, "submitted"
+      means any form of electronic, verbal, or written communication sent
+      to the Licensor or its representatives, including but not limited to
+      communication on electronic mailing lists, source code control systems,
+      and issue tracking systems that are managed by, or on behalf of, the
+      Licensor for the purpose of discussing and improving the Work, but
+      excluding communication that is conspicuously marked or otherwise
+      designated in writing by the copyright owner as "Not a Contribution."
+
+      "Contributor" shall mean Licensor and any individual or Legal Entity
+      on behalf of whom a Contribution has been received by Licensor and
+      subsequently incorporated within the Work.
+
+   2. Grant of Copyright License. Subject to the terms and conditions of
+      this License, each Contributor hereby grants to You a perpetual,
+      worldwide, non-exclusive, no-charge, royalty-free, irrevocable
+      copyright license to reproduce, prepare Derivative Works of,
+      publicly display, publicly perform, sublicense, and distribute the
+      Work and such Derivative Works in Source or Object form.
+
+   3. Grant of Patent License. Subject to the terms and conditions of
+      this License, each Contributor hereby grants to You a perpetual,
+      worldwide, non-exclusive, no-charge, royalty-free, irrevocable
+      (except as stated in this section) patent license to make, have made,
+      use, offer to sell, sell, import, and otherwise transfer the Work,
+      where such license applies only to those patent claims licensable
+      by such Contributor that are necessarily infringed by their
+      Contribution(s) alone or by combination of their Contribution(s)
+      with the Work to which such Contribution(s) was submitted. If You
+      institute patent litigation against any entity (including a
+      cross-claim or counterclaim in a lawsuit) alleging that the Work
+      or a Contribution incorporated within the Work constitutes direct
+      or contributory patent infringement, then any patent licenses
+      granted to You under this License for that Work shall terminate
+      as of the date such litigation is filed.
+
+   4. Redistribution. You may reproduce and distribute copies of the
+      Work or Derivative Works thereof in any medium, with or without
+      modifications, and in Source or Object form, provided that You
+      meet the following conditions:
+
+      (a) You must give any other recipients of the Work or
+          Derivative Works a copy of this License; and
+
+      (b) You must cause any modified files to carry prominent notices
+          stating that You changed the files; and
+
+      (c) You must retain, in the Source form of any Derivative Works
+          that You distribute, all copyright, patent, trademark, and
+          attribution notices from the Source form of the Work,
+          excluding those notices that do not pertain to any part of
+          the Derivative Works; and
+
+      (d) If the Work includes a "NOTICE" text file as part of its
+          distribution, then any Derivative Works that You distribute must
+          include a readable copy of the attribution notices contained
+          within such NOTICE file, excluding those notices that do not
+          pertain to any part of the Derivative Works, in at least one
+          of the following places: within a NOTICE text file distributed
+          as part of the Derivative Works; within the Source form or
+          documentation, if provided along with the Derivative Works; or,
+          within a display generated by the Derivative Works, if and
+          wherever such third-party notices normally appear. The contents
+          of the NOTICE file are for informational purposes only and
+          do not modify the License. You may add Your own attribution
+          notices within Derivative Works that You distribute, alongside
+          or as an addendum to the NOTICE text from the Work, provided
+          that such additional attribution notices cannot be construed
+          as modifying the License.
+
+      You may add Your own copyright statement to Your modifications and
+      may provide additional or different license terms and conditions
+      for use, reproduction, or distribution of Your modifications, or
+      for any such Derivative Works as a whole, provided Your use,
+      reproduction, and distribution of the Work otherwise complies with
+      the conditions stated in this License.
+
+   5. Submission of Contributions. Unless You explicitly state otherwise,
+      any Contribution intentionally submitted for inclusion in the Work
+      by You to the Licensor shall be under the terms and conditions of
+      this License, without any additional terms or conditions.
+      Notwithstanding the above, nothing herein shall supersede or modify
+      the terms of any separate license agreement you may have executed
+      with Licensor regarding such Contributions.
+
+   6. Trademarks. This License does not grant permission to use the trade
+      names, trademarks, service marks, or product names of the Licensor,
+      except as required for reasonable and customary use in describing the
+      origin of the Work and reproducing the content of the NOTICE file.
+
+   7. Disclaimer of Warranty. Unless required by applicable law or
+      agreed to in writing, Licensor provides the Work (and each
+      Contributor provides its Contributions) on an "AS IS" BASIS,
+      WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or
+      implied, including, without limitation, any warranties or conditions
+      of TITLE, NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A
+      PARTICULAR PURPOSE. You are solely responsible for determining the
+      appropriateness of using or redistributing the Work and assume any
+      risks associated with Your exercise of permissions under this License.
+
+   8. Limitation of Liability. In no event and under no legal theory,
+      whether in tort (including negligence), contract, or otherwise,
+      unless required by applicable law (such as deliberate and grossly
+      negligent acts) or agreed to in writing, shall any Contributor be
+      liable to You for damages, including any direct, indirect, special,
+      incidental, or consequential damages of any character arising as a
+      result of this License or out of the use or inability to use the
+      Work (including but not limited to damages for loss of goodwill,
+      work stoppage, computer failure or malfunction, or any and all
+      other commercial damages or losses), even if such Contributor
+      has been advised of the possibility of such damages.
+
+   9. Accepting Warranty or Additional Liability. While redistributing
+      the Work or Derivative Works thereof, You may choose to offer,
+      and charge a fee for, acceptance of support, warranty, indemnity,
+      or other liability obligations and/or rights consistent with this
+      License. However, in accepting such obligations, You may act only
+      on Your own behalf and on Your sole responsibility, not on behalf
+      of any other Contributor, and only if You agree to indemnify,
+      defend, and hold each Contributor harmless for any liability
+      incurred by, or claims asserted against, such Contributor by reason
+      of your accepting any such warranty or additional liability.
+
+   END OF TERMS AND CONDITIONS
+
+   APPENDIX: How to apply the Apache License to your work.
+
+      To apply the Apache License to your work, attach the following
+      boilerplate notice, with the fields enclosed by brackets "[]"
+      replaced with your own identifying information. (Don't include
+      the brackets!)  The text should be enclosed in the appropriate
+      comment syntax for the file format. We also recommend that a
+      file or class name and description of purpose be included on the
+      same "printed page" as the copyright notice for easier
+      identification within third-party archives.
+
+   Copyright [yyyy] [name of copyright owner]
+
+   Licensed under the Apache License, Version 2.0 (the "License");
+   you may not use this file except in compliance with the License.
+   You may obtain a copy of the License at
+
+       http://www.apache.org/licenses/LICENSE-2.0
+
+   Unless required by applicable law or agreed to in writing, software
+   distributed under the License is distributed on an "AS IS" BASIS,
+   WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+   See the License for the specific language governing permissions and
+   limitations under the License.

dolphinscheduler-ui/src/locales/en_US/security.ts

@@ -273,6 +273,12 @@ export default {
     MsgType: 'Msg Type',
     // eslint-disable-next-line quotes
     IsAtAll: "{'@'}All",
+    calledNumber:"Called phone number",
+    calledShowNumber:"Call display number",
+    ttsCode:"TTS Code",
+    address:'Address',
+    accessKeyId:"AccessKeyId",
+    accessKeySecret:"AccessKeySecret",
     annotations: 'Annotations',
     generatorURL: 'GeneratorURL',
   },

dolphinscheduler-ui/src/locales/zh_CN/security.ts

@@ -272,6 +272,12 @@ export default {
     MsgType: '消息类型',
     // eslint-disable-next-line quotes
     IsAtAll: "{'@'}所有人",
+    calledNumber:"被叫电话号码",
+    calledShowNumber:"呼叫显示号码",
+    ttsCode:"语音模板",
+    address:'访问域名',
+    accessKeyId:"AccessKeyId",
+    accessKeySecret:"AccessKeySecret",
     annotations: '注释',
     generatorURL: '生成地址',
   },

tools/dependencies/known-dependencies.txt

@@ -485,4 +485,18 @@ snowflake-jdbc-3.13.29.jar
 azure-storage-blob-12.21.0.jar
 azure-storage-internal-avro-12.6.0.jar
 vertica-jdbc-12.0.4-0.jar
-esdk-obs-java-bundle-3.23.3.jar
+esdk-obs-java-bundle-3.23.3.jar
+dyvmsapi20170525-2.1.4.jar
+alibabacloud-gateway-spi-0.0.1.jar
+credentials-java-0.2.2.jar
+endpoint-util-0.0.7.jar
+openapiutil-0.1.14.jar
+tea-1.1.14.jar
+tea-openapi-0.2.2.jar
+tea-rpc-0.0.11.jar
+tea-rpc-util-0.1.3.jar
+tea-util-0.2.13.jar
+dom4j-2.1.3.jar
+jaxb-core-2.3.0.jar
+jaxb-impl-2.3.0.jar
+
